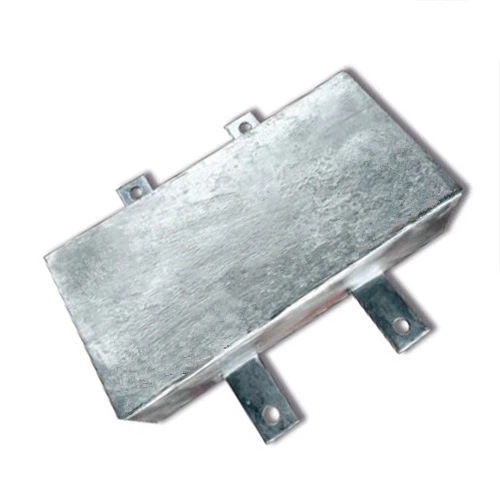

Magniy kondenser anode
Issiqlik buyumlari, kondenser suv qutilarida, kondenser suv qutilarida, sovutish minoralar, intervalulerlar va idishga kirish uchun mos keladigan magniy kondensater and.
Kondensater anode yalang'och yoki plastisol bilan qoplangan. Plastisol (polivinil xlorid) tomonlar bilan qoplash, tugaydi va fayrli sirtlar juda yaxshi to'siq qalqon sifatida xizmat qiladi.

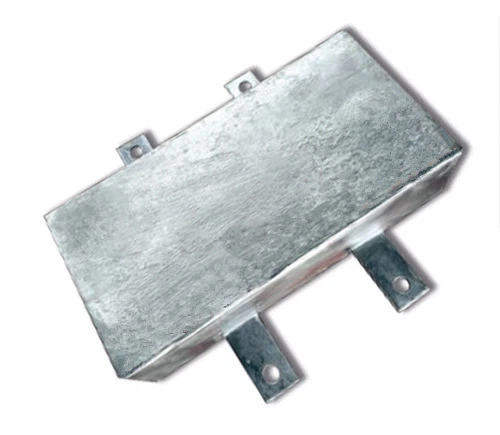

W seriyali anod
|
Yo'q |
Vazn |
Kenglik |
Balandlik |
Uzunligi |
|
H-22 |
10 kg (22 funt) |
508mm (20 ») |
51 mm (2. 0) |
254 mm (10 ") |
|
H-12W |
5.4 kg (12 funt) |
229 mm (9 ») |
51 mm (2. 0) |
229 mm (9 ») |
|
H-24W |
10.9kg (24 funb) |
229mm (9. 0) |
51 mm (2. 0) |
457mm (18. 0) |
|
H-44W |
20kg (44 funb) |
229mm (9. 0) |
101,6 mm (4 ") |
482mm (19. {0) |

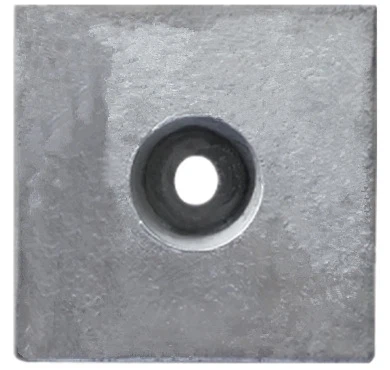

Kvadrat shakli anod
|
Yo'q |
Vazn |
Uzunligi |
Kenglik |
Balandlik |
|
6sx3 |
2.7 kg (6 funt) |
2 0 3mm (8.0 ») |
76 mm (7. 0) |
1 0 1,6 mm (4.0 ») |
|
7.5S |
3.4 kg (7,5 funt) |
2 0 3mm (8.0 ») |
2 0 3mm (8.0 ») |
51 mm (2. 0) |
|
15S |
6.8 kg (15lbs) |
2 0 3mm (8.0 ») |
2 0 3mm (8.0 ») |
1 0 1,6 mm (4.0 ») |

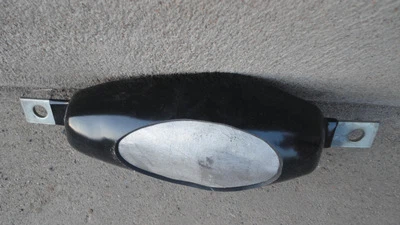

Non ano
|
Yo'q |
Vazn |
Uzunligi |
Kenglik |
Balandlik |
|
10- ishga tushirildi |
4.5 kg (10 funb) |
3 0 5mm (12.0 ») |
152.4mm (6. {{{{{{{{{{{{{{{{{{{{{}} |
76.2 mm (3. {{{{{{{{{{{{{{{{{{{{{}} |
|
5- ishga tushirildi |
2.3kg (5Lbs) |
254mm (1 {2}}. 0 ") |
127 mm (5. 0) |
63.5 mm (2.5 ») |
|
Jr |
0. 7kg (1.5 funt) |
228.6mm (9. {{{{{{{{{{{{{{{{{{{{{{{{}} |
76.2 mm (3. {{{{{{{{{{{{{{{{{{{{{}} |
34.9mm (1-3} {8 ») |
